BK260L 110V Heavy-duty Precision Metal Bench Lathe 10.2"*27.6" AC Motor Metric Screw Thread Way Wood Horizontal Processer

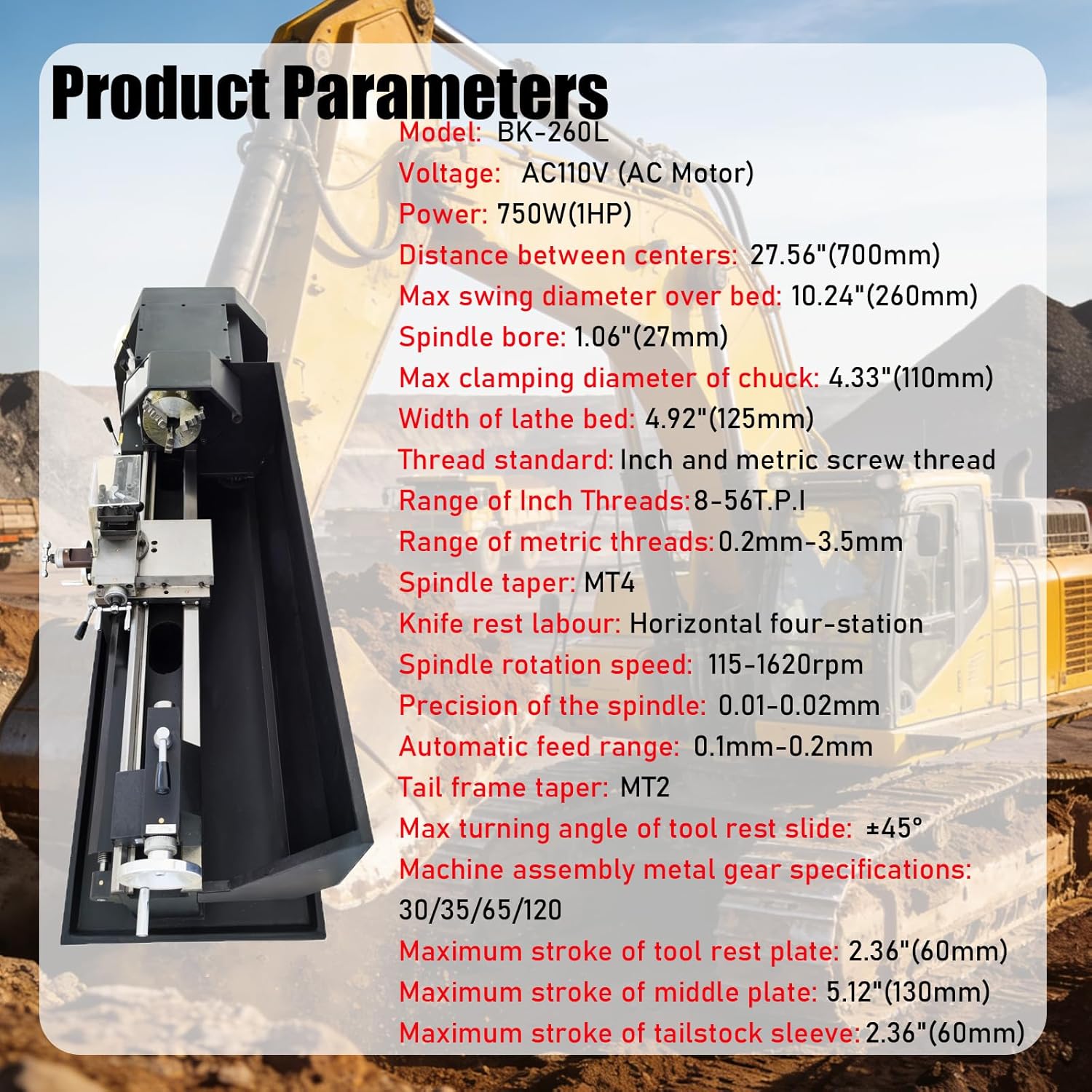

Specification Model: BK-260L Voltage: AC110V (AC Motor) Power: 750W(1HP) Distance between centers: 27.56"(700mm) Max swing diameter over bed: 10.24"(260mm) Spindle bore: 1.06"(27mm) Max clamping diameter of chuck: 4.33"(110mm) Width of lathe bed: 4.92"(125mm) Thread standard: Inch and metric screw thread Range of Inch Threads: 8-56T.P. I Range of metric threads: 0.2mm-3.5mm Spindle taper: MT4 Knife rest labour: Horizontal four-station Spindle rotation speed: 115-1620rpm Precision of the spindle: 0.01-0.02mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Max turning angle of tool rest slide: ±45° Machine assembly metal gear specifications: 30/35/65/120 Maximum stroke of tool rest plate: 2.36"(60mm) Maximum stroke of middle plate: 5.12"(130mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package Dimensions 58"*24"*24"; 424pounds

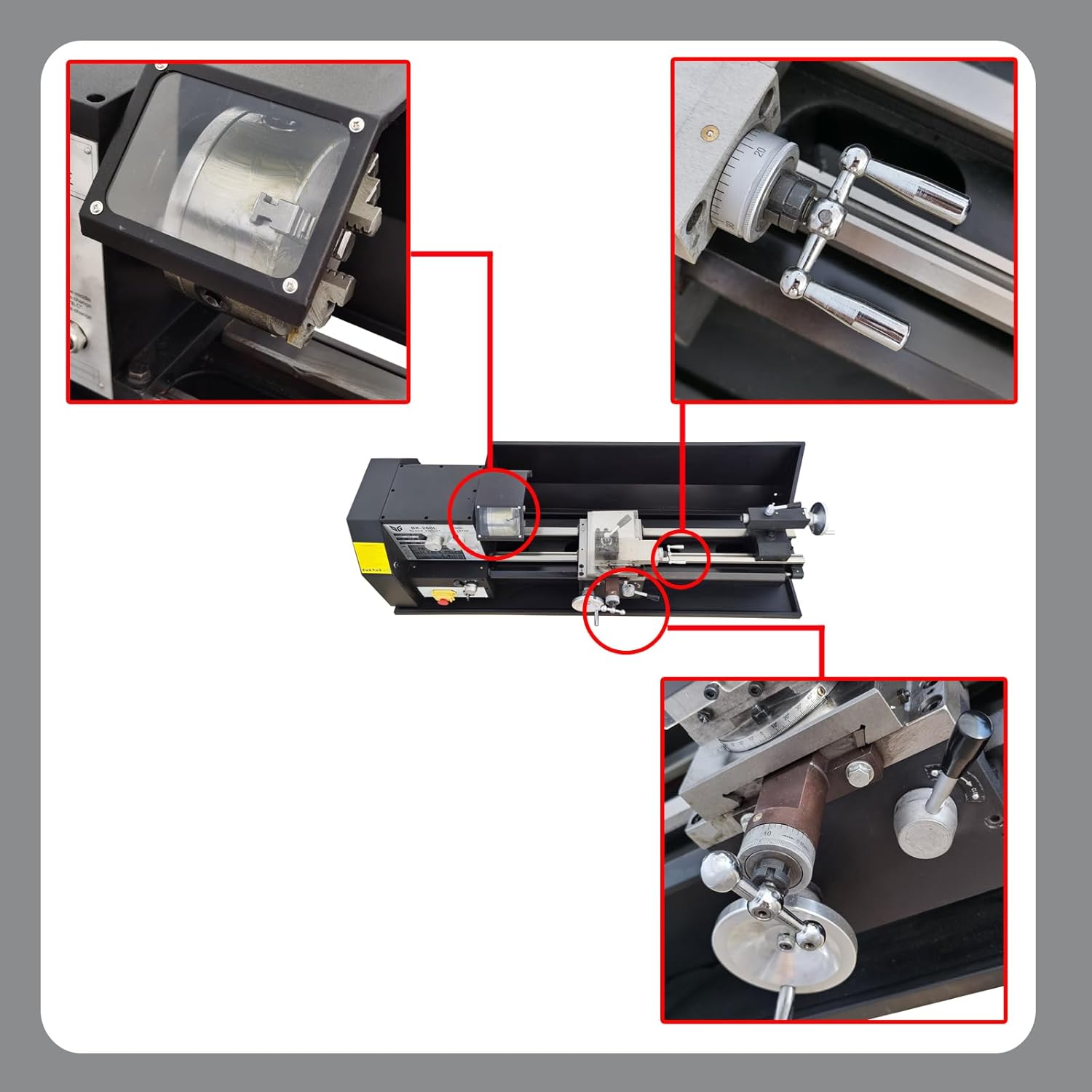

• [4-way Tool Post] The lathe's adjustable 4-way tool post enables quick and easy cutting tool changes. Equipped with 8 screws, it ensures secure tool clamping for efficient machining and precise finishing. The processing range is wider, metric thread range 0.2-3.5mm, inch thread range 8-56TPI.
• [Accurate Tailstock] Tailstock is movable and fixed, with a maximum center distance of 27.56" at the far right. With the MT#2 taper in tailstock spindle, this lathe is capable of adjusting set screws for accurate operation.
• [Control Panel] The integrated control panel features three intuitive, a power switch equipped with an emergency stop button, spindle forward/stop/reverse controls, and a lead screw rotation control lever that enables precise activation and stopping of the lead screw, with all operational options at-a-glance visible to ensure user-friendly and efficient operation.
• [Speed Shift Handle and AC Motor] By controlling the two speed shift handles, you can quickly and accurately switch the spindle speed gear from 115rpm to 1620rpm, which is more precise than the brushless motor lathe, and can meet almost all your machining needs. Specially customized pure copper core AC motor.
• [Wide Application] This lathe is capable of turning end faces, cutting internal/external threads, machining Buddha beads, as well as performing drilling, chamfering, cutting, and other processing operations. Beyond catering to DIY processing needs, this heavy-duty lathe is particularly suited for factories, schools, and educational institutions. Compared to standard lathes, it delivers significantly enhanced performance.
