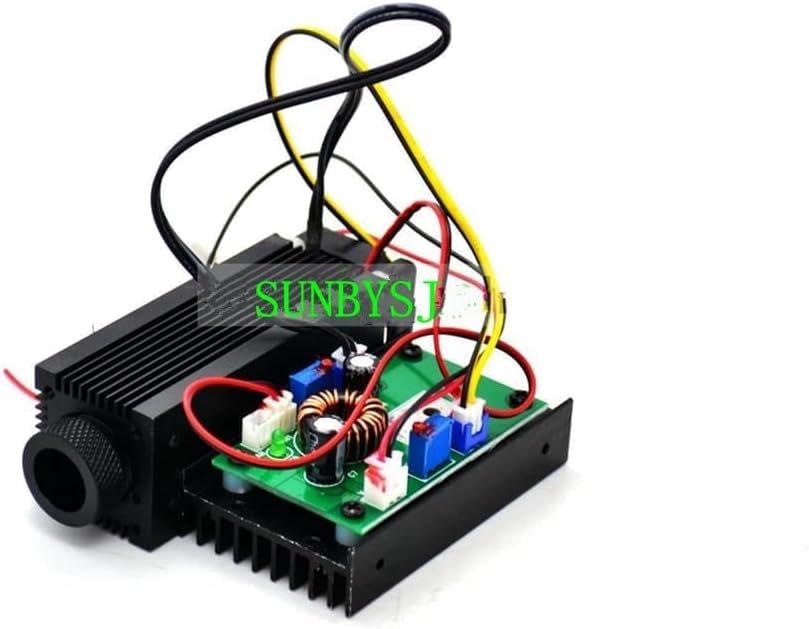

Focusable 980nm W0.8 G-L800 M W Adjusted Infrared IR Laser Diode Dot Module w/TTL

Focusable 980nm W0.8 G-L800 M W Adjusted Infrared IR Laser Diode Dot Module w/TTL Features: Output : M W-800 Wavelength 980nm Input Voltage 12VDC Input Current 3A Working Temperature -10°C- 30°C TTL >20KHz Divergence 5mrad Beam Diameter 6mm Focusable YES LD 980nm 1W Lens Glass Dimensions 33*33*80mm Working Life >5000 Hours Detail: 1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30?. 2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire. 3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust. 4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up. 5. Please wear 980nm laser protection goggles to protect your eyes when working on this module. Package: 1 x Focusable 980nm W0.8 G-L800 M W Adjusted Infrared IR Laser Diode Dot Module w/TTL

• Output :M W-800
• Wavelength 980nm
• Input Voltage 12VDC
• Divergence 5mrad
• Beam Diameter 6mm
